Geoprocessing tool "Create formations"

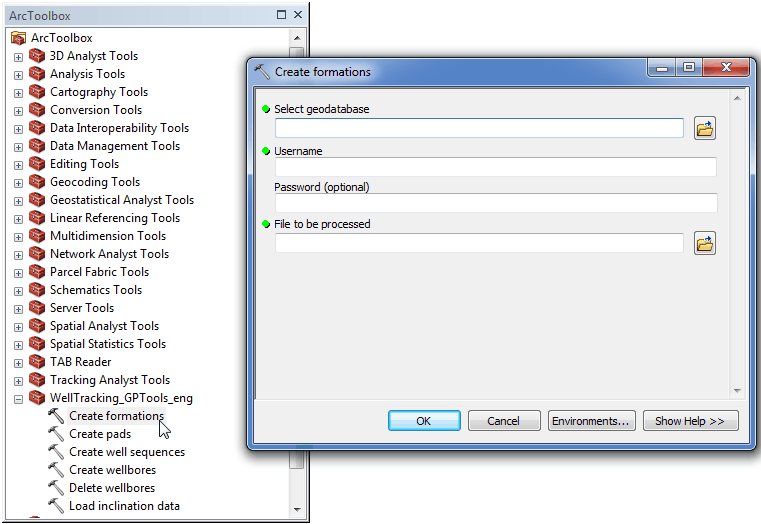

In order to add text data to database for batch creation of formations, following dialog should be filled in.





• Select the geodatabase. By default the path to the active GDB used for the last entrance will be specified. If you are logged in the WellTracking system, the path to the database is specified automatically.

• Specify user name;

• Enter password (optional parameter);

• Specify the file name and location.

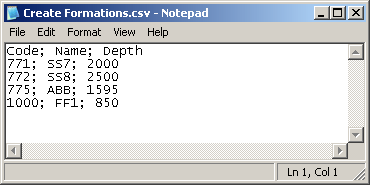

Example of the text file in the *.csv format with the formations parameters to be added to the database using the "Create formations" geoprocessing tool.

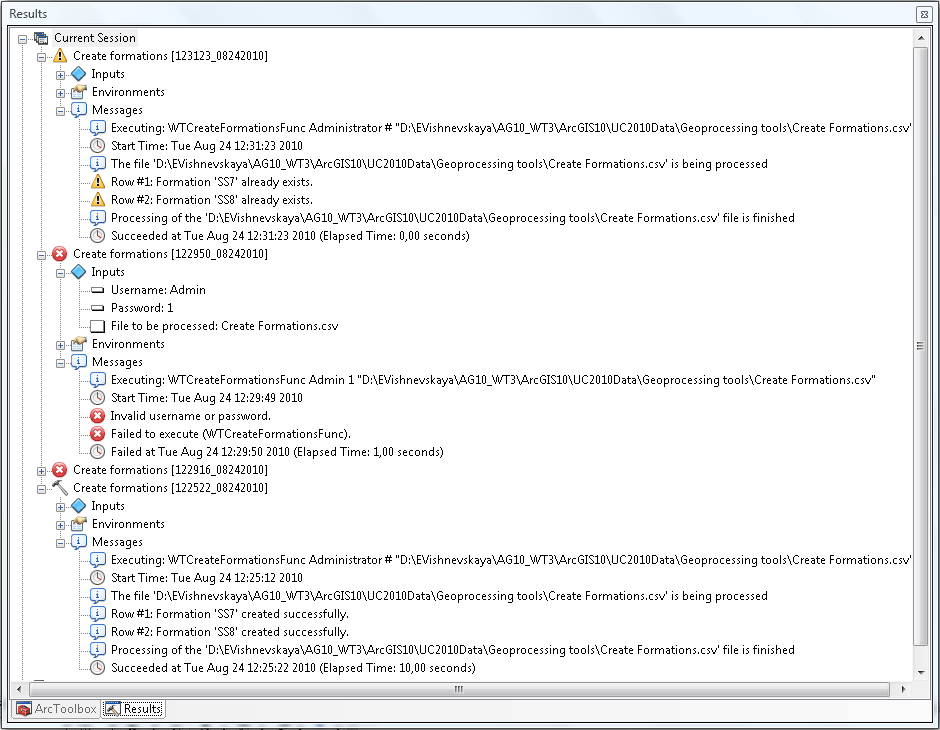

Press ОК to run the project formations batch creation process. The list of found errors will be shown in the process status dialog.











*****
