Geoprocessing tools

The system allows using custom geoprocessing services to analyze and search interactive map objects. The geoprocessing service settings allow showing input and output service parameters in the interface of the interactive map. The list of available services is displayed on the GP Tools tab.

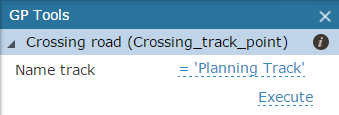

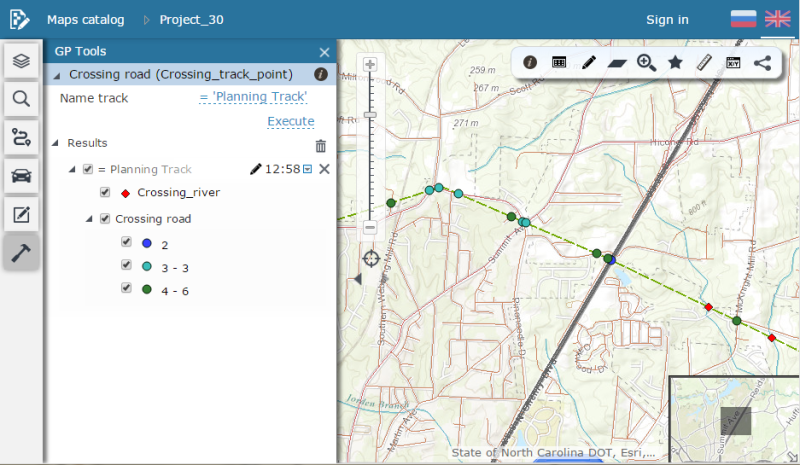

To start using geoprocessing tool, select it from the list. The tool parameters will be shown based on specified settings. Specify the equality operator, enter (or select from the drop-down list) the value used to compare your parameter, enter its value and measurement units. Press Execute to run the tool. The result will be shown on the map and in the results list of the GP Tool dialog.





The context menu with the geoprocessing result contains the following options:



• Open in attribute table - if the result of geoprocessing is filtered map layer, its filtered attribute table will be opened.

• Change geoprocessing result color - the option for changing the geoprocessing result color is similar to setting layer color option.

• Use parameters - the source parameters will be copied to the geoprocessing parameters.

• Add to favorites .
