Step 6. Summary info

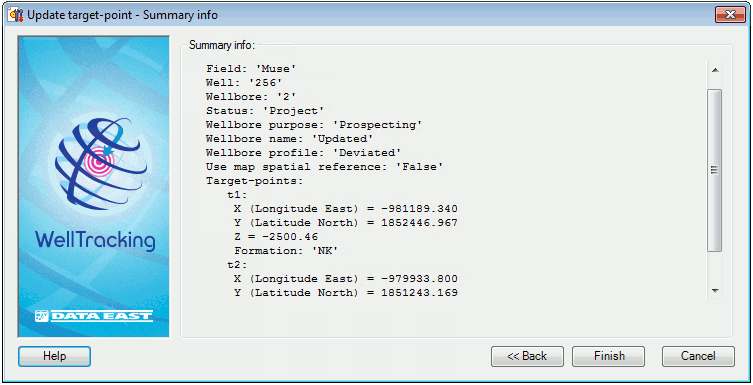

At this step the user checks the summary of the updated target-point in the next dialog.



If everything is OK, click Finish to complete the target-point updating process.

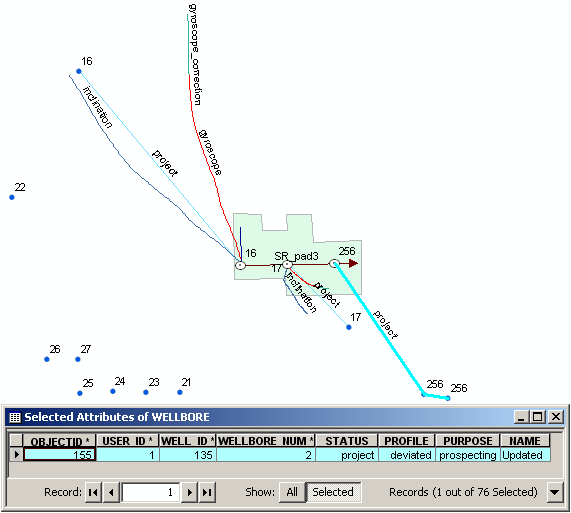

The result of the Update target-point tool work is shown below.



The vertical well profile has been changed to the deviated with two target-points having entries to the different formations. The wellbore purpose and its name have been also updated. All parameters changes have been added to the appropriate attribute tables (TARGET_POINT, WELL) and to the WELLBORE table too.













*****
