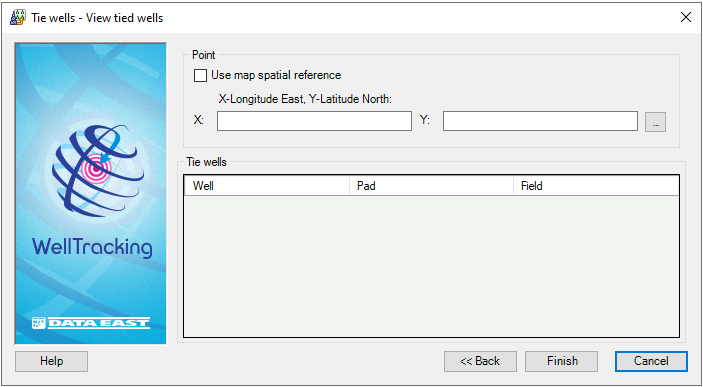

Step 3. View tied wells

The default location of the pad tie point is the pad centroid. Though, the tie point location can be also specified manually by adding X, Y coordinates or by clicking on the appropriate pad are on the map.





Click Finish to run the tieing well process.





The "Operation succeeded " message will pop up as soon as the well tieing process is complete. Click OK to exit the dialog.



The tied wells on the map will look as following:

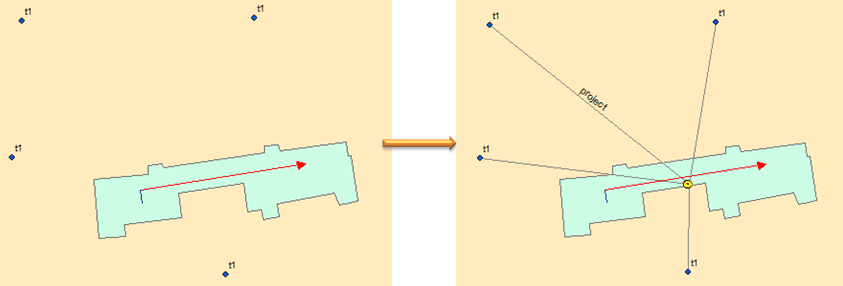

• The default tying. The tie point is the pad centroid.

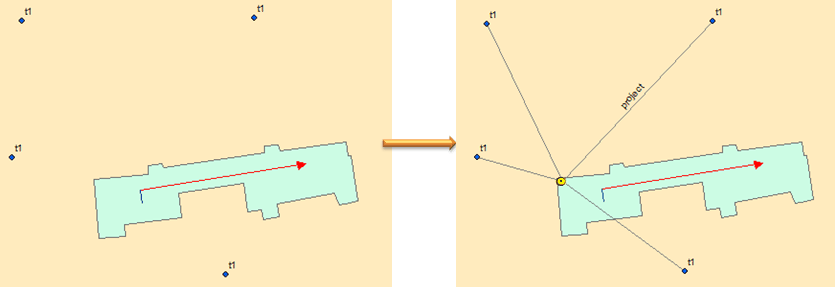

• The tie point is specified by the user.











*****
