Step 3. View list of wells to be corrected

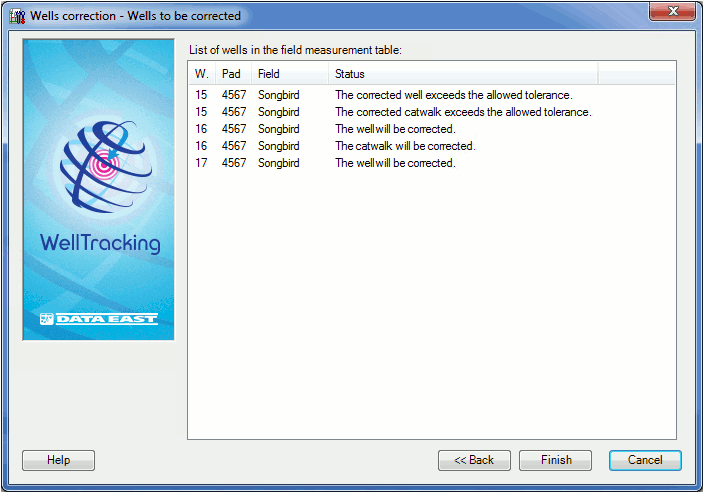

At this step you can view the list of wells to be corrected.





The allowed tolerance of the corrected well is 5 m. The warning message is returned in case if the allowed tolerance of the corrected wellhead has been exceeded: "The corrected well exceeds the allowed tolerance" .



Click Finish to initiate the data processing.





The figures below show an example of the Wells correction tool work.



Well parameters #15, 16, 17 specified during the wellhead creation using the Create wellhead tool.



Well number	Catwalk length, m	Angle, dec.degr.	Catwalk location relative to well sequence
15	20	90	right
16	40	45	left
17

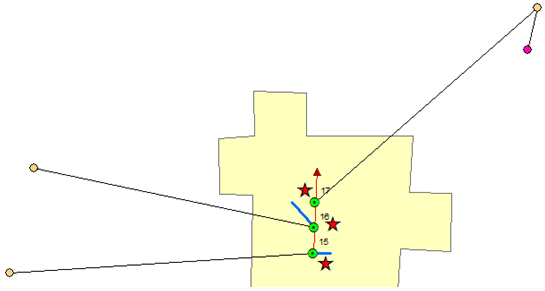

Field measurements data and wellhead position before correction.





Parameters specified for wellhead correction.



Well number	Catwalk length, m	Azimuth, dec.degr.
15	50	135
16	10	0
17

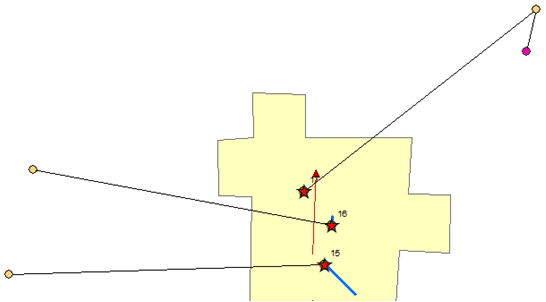

Output wellhead position after work of the Wells correction tool.







*****
