Inclination data formats used in WellTracking

The Inclination data input and the Load archive wells tools use text files of *.inc, *.las, *.lst, and *.txt formats to create wellbores geometries. See below the examples of data in these formats.

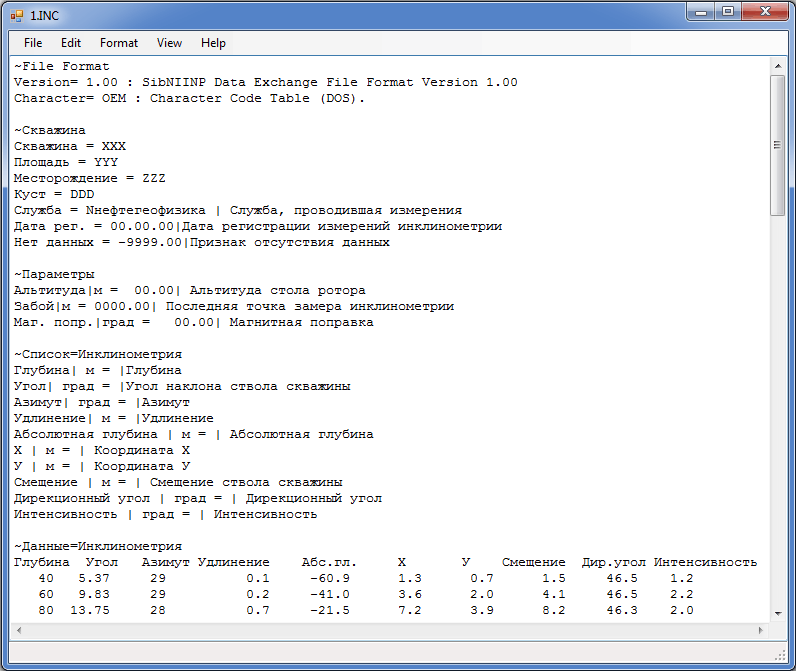

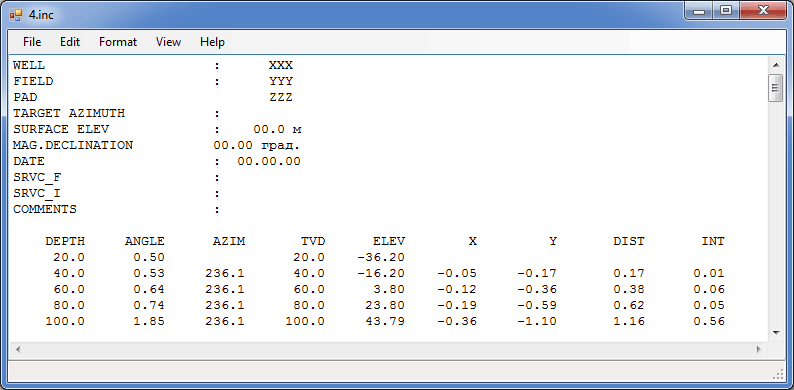

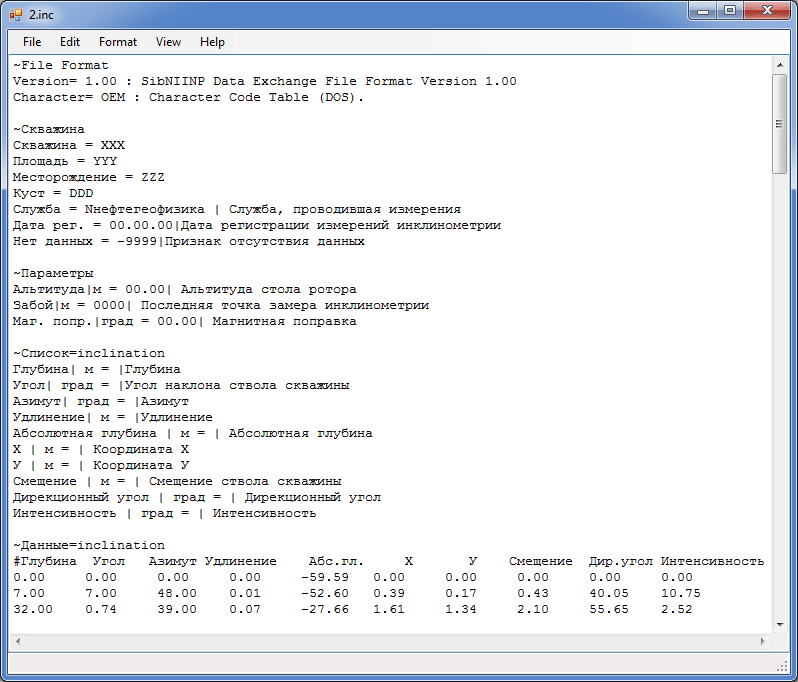

1. Examples of the *.inc data

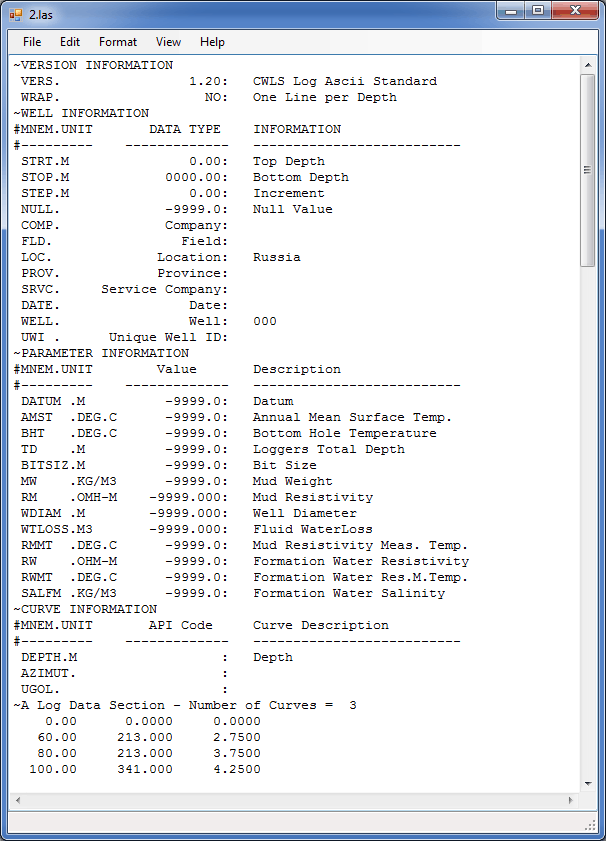

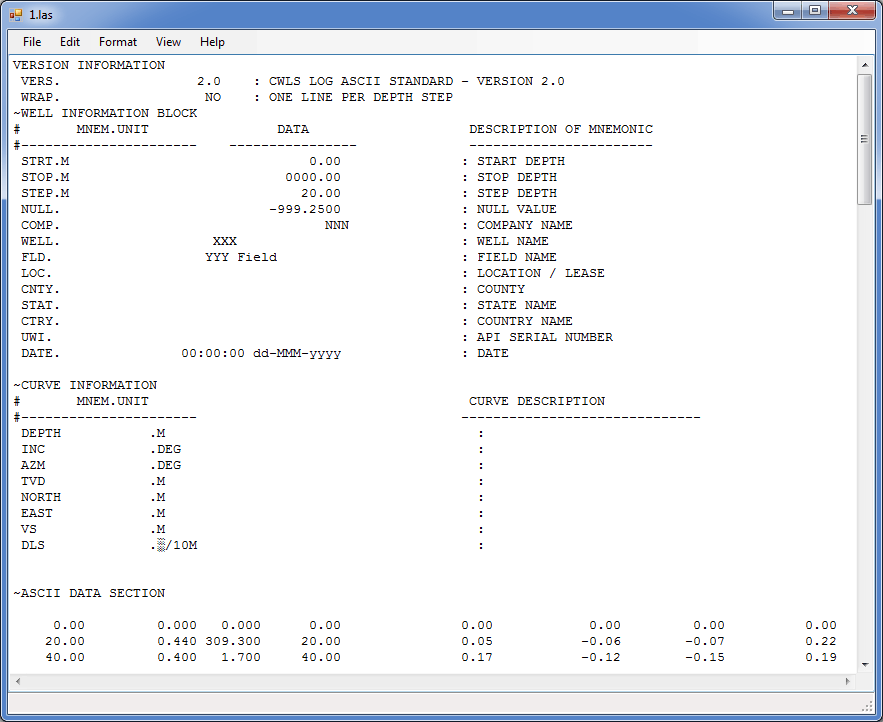

2. Examples of the *.las data

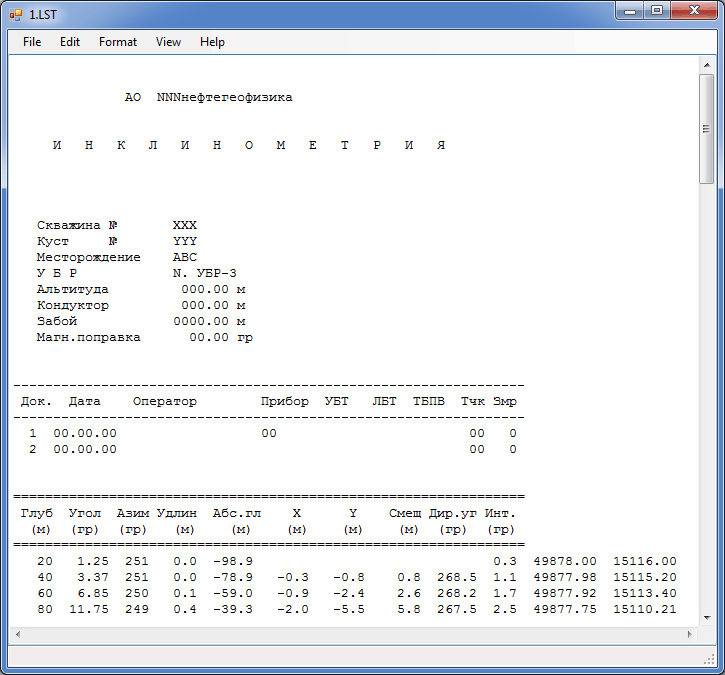

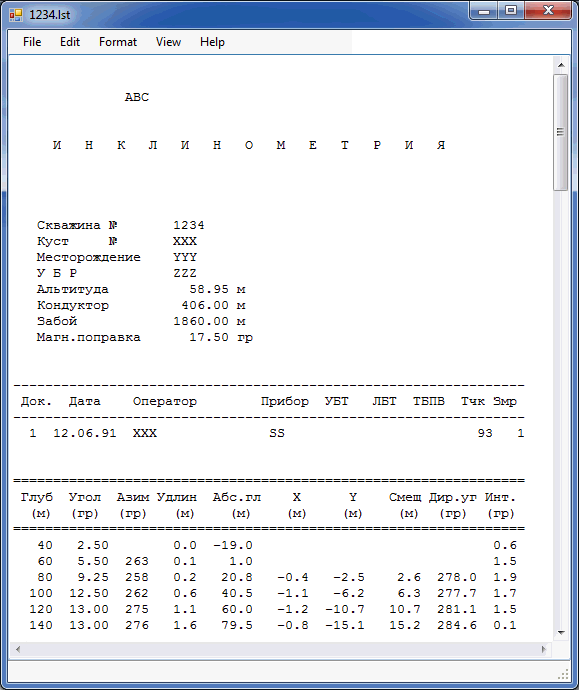

3. Examples of the *.lst data

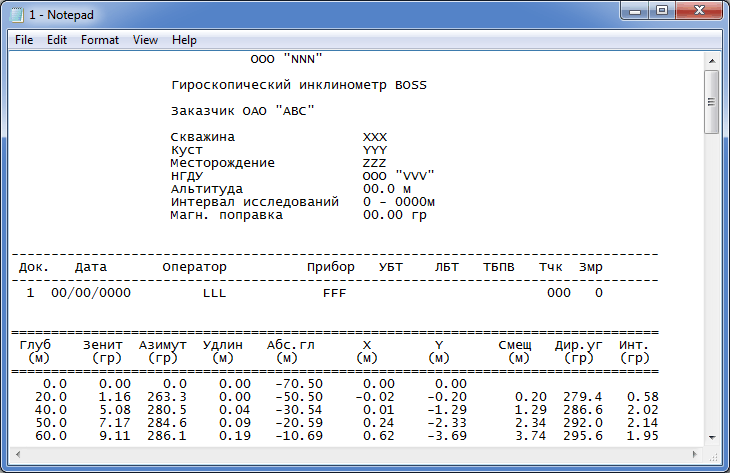

4. Examples of the  *. txt data











*****
