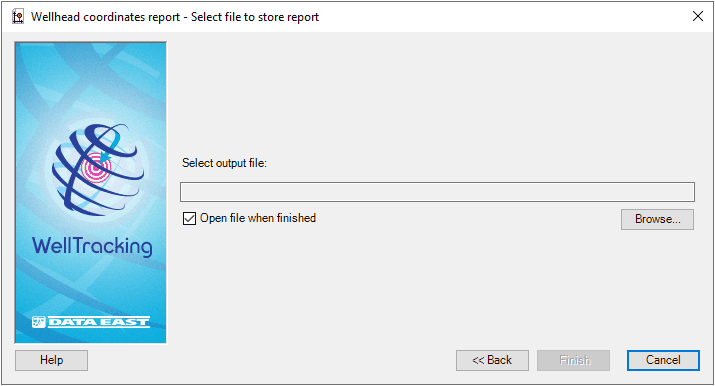

Step 5. Specify report file name and location

In the next dialog the report file name and location is specified.





Сheck the box near the Open file when finished option to view the report data just after the work of the tool is completed.



Click Back to get back to the previous step of selecting the wells.



Click Finish to initiate the report creation.



To close the tool dialog click Cancel.



Attention to SDE database users: If the report size is more than 1Mb, the following message appears:





The record in the reports history can not be created. Visit http://support.esri.com/index.cfm?fa=knowledgebase.techarticles.articleShow&d=35086  to learn more.

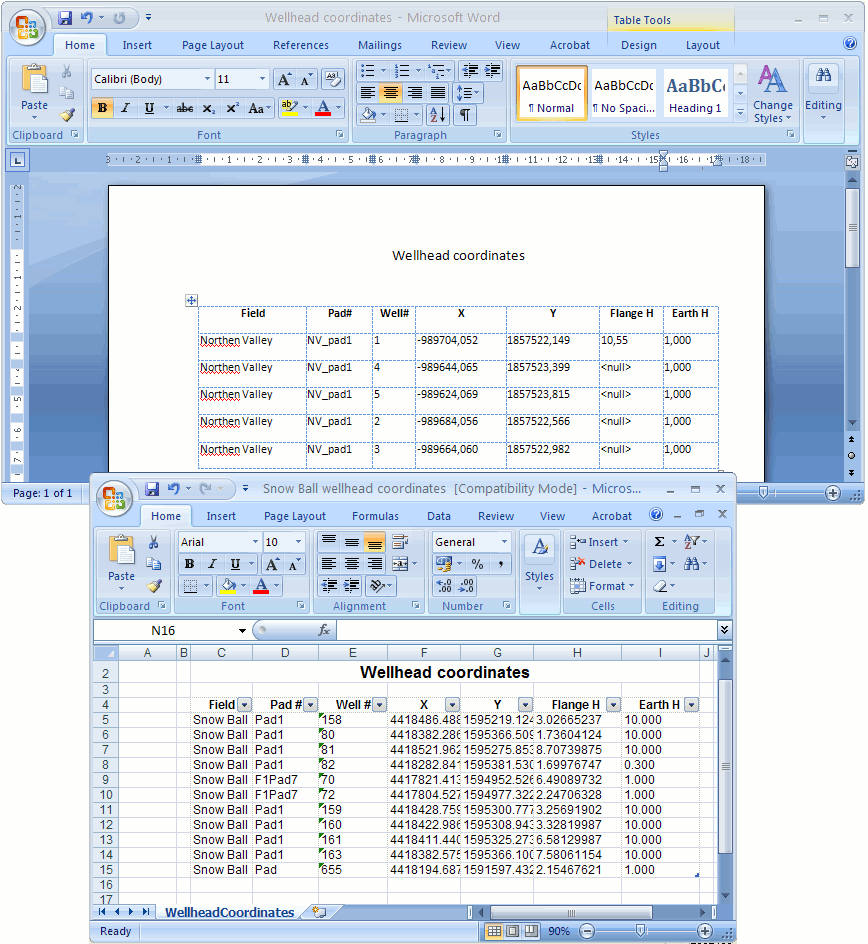

Below are the reports, created as a result of the tool work.









*****
