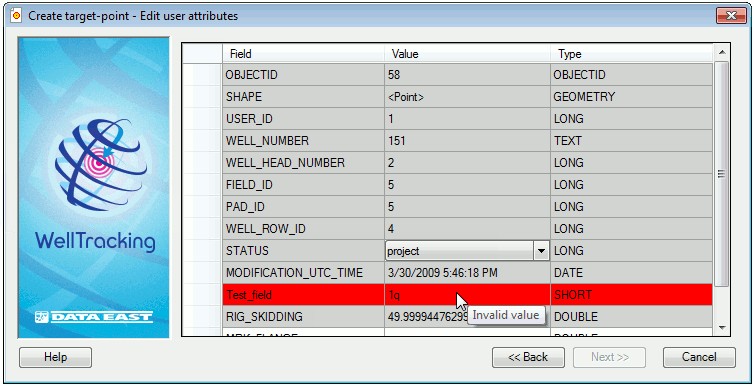

Step 4. Edit user attributes of the target-point

At this step the attribute data of the created target-point can be edited.





Context pop-ups describing found errors and the option of sorting values for the Field and Type fields are provided for user's convenience.



The fields for editing are marked white. There is no option of inputting new field in the attribute table at this step. The process of adding the fields is performed before calling this wizard, which is described in the Add fields to the attribute tables section.



Service fields, which are not to be edited by the user, are marked grey.



Incorrectly input parameters are marked red and in this case the Next button becomes disabled.



Press Next to get to the next step of target-point creation.



Press Back to get back to the previous step of specifying the target-point parameters.



Click Cancel to exit the Create target-point tool dialog.







*****
