Step 2. Specify pad properties

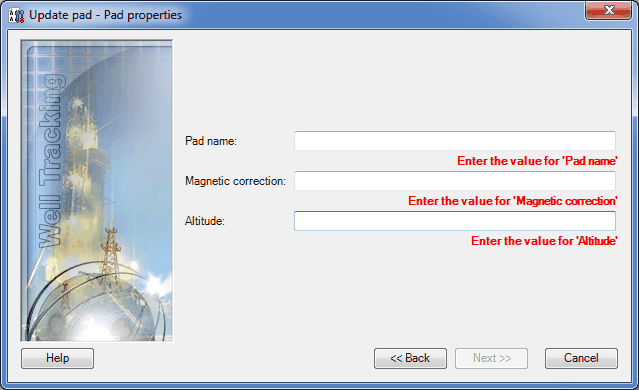

At this step you can change the pad name,  magnetic correction and altitude values, if required. When you open the dialog, the Magnetic correction field is filled in with the value of one specified by creating the field.

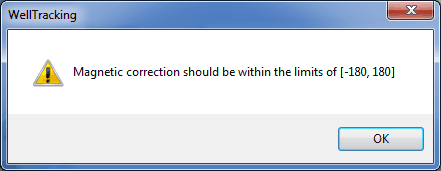

By entering the invalid value of the magnetic correction the appropriate warning message is returned.





Press Back to get back to the previous step, Next to move to the next step and Cancel to exit the Update pad tool dialog.







*****
