Adding TAB Reader geoprocessing tools

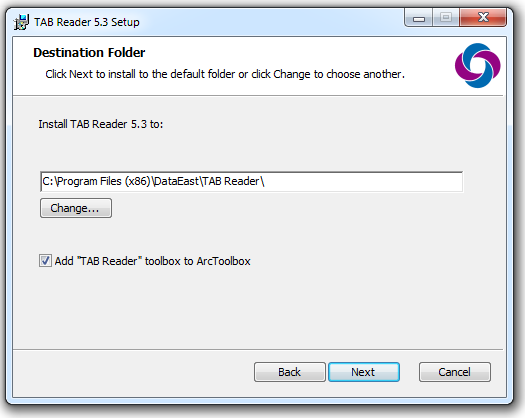

TAB Reader toolbox is installed and automatically added to ArcToolbox if a corresponding option to add TAB Reader toolbox to ArcToolbox was selected in the TAB Reader installation process. The option is selected by default.







If you didn't select to add a toolbox in the installation process or it was removed for some reason you can add it manually at any time.

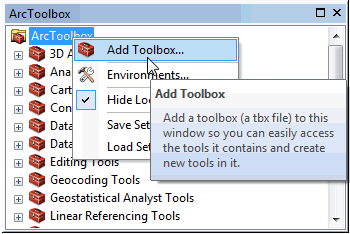

To add the TAB Reader toolbox to ArcToolbox window in ArcMap right-click in the ArcToolbox window and select the "Add Toolbox..." menu item:





Then browse to the TAB Reader installation folder:



...\DataEast\TAB Reader\Toolbox\



and select the TAB Reader.tbx file.

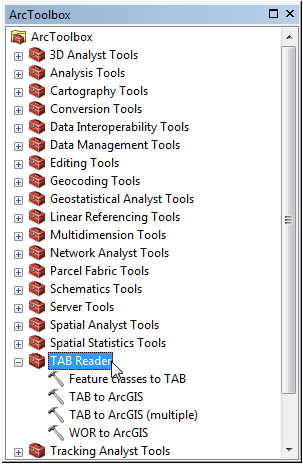

TAB Reader toolbox will be added to the ArcToolbox list:

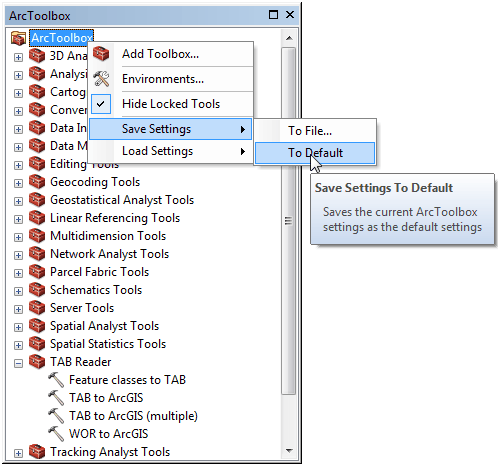

After adding a toolbox It is recommended to save ArcToolbox settings either to file or to default (Save Settings> To Default) in order to keep the toolbox for the next sessions:





As well, you can add the TAB Reader toolbox in ArcCatalog (read more about adding and managing toolboxes in ArcGIS Desktop Help).
